Description

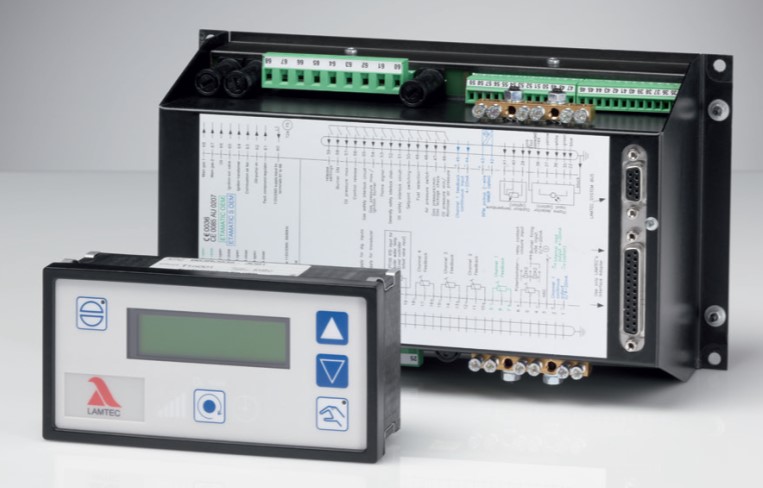

LAMTEC ETAMATIC – compact total solution for multifunctional burner control.

All-in-one for simple integrated, coordinated electronic control and maximum efficiency: This is the LAMTEC ETAMATIC. It combines all the functions required for burner control in a compact housing.

These days combustion plants need to be three things:

fail-safe, clean and effective – not just during ongoing operation, but also during setup and commissioning. This is why we developed the LAMTEC ETAMATIC burner control. The compact total solution for combustion management combines the advantages of a fuel/air ratio control and burner control device with automatic power control, CO and O2 optimization as well as valve leakage and flame monitoring – in a single device. This does more than simply ensure the best possible coordination of the control, regulation and test functions in a few, simple steps.

The compact design also reduces the cost of additional relays and wiring, making installation and commissioning simple and fail-safe. Safety chains, sensors and monitors are connected directly on the ETAMATIC via digital inputs. If desired, the ETAMATIC can house the entire control directly on the burner and still take advantage of bus networking and PC-based remote control, evaluation and documentation via defined interfaces. This sees us once again demonstrating that LAMTEC delivers leading combustion technology for all kinds of tasks and applications.

Strong functions.

Electronic burner control

Burner sequencer and assembly can be adjusted for a wide range of combustion conditions by setting parameters. Starting with and without pilot burner can be set separately for oil and gas. Starting without pre-purge is possible in accordance with EN676.

Fuel/air ratio control with up to 4 actuators

The ETAMATIC is available with 4 three-point step outputs or with 3 three-point step outputs and a continuous output (such as for speed control).

Firing-rate controller

On request, the ETAMATIC undertakes the firing rate controller of the burner. An internal firing rate controller allows up to two switchable set-points for temperature or pressure to be defined (e.g. for night-time reduction or heat-maintenance mode, external set-point shift (weather guidance) or start-up control), compare these with actual values and determine the burner firing rate position required to reach the set-points. The latter is then forwarded to the electronic assembly as the target value. The firing rate controller can be used as a fixed value or weather-guided controller.

Valve leakage check

The integrated valve leakage check can be run before ignition or after shutdown.

Integrated start-up and operating hour counters

Start-up and operating hours counters count both the total start-ups and burner operating hours as well as for each operating mode (gas, oil) separately.
