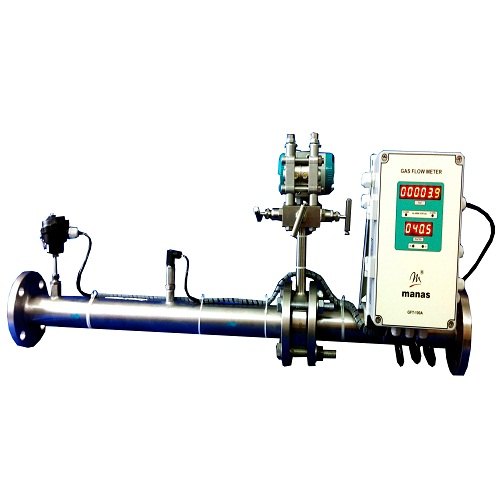

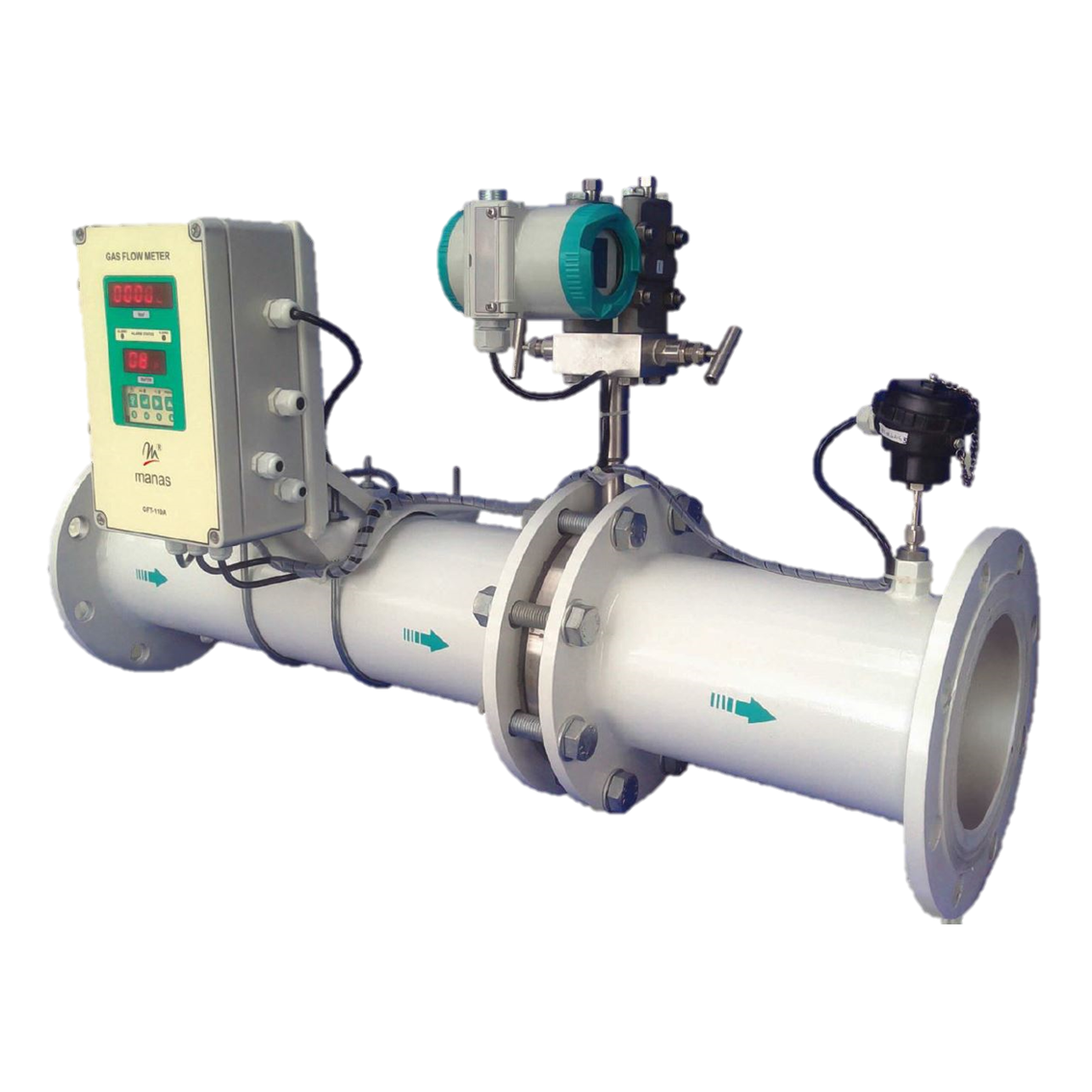

Manas Gas Flow Meter
The GFMc-150 flow meter is applicable for measuring flow rates of Bio-gas, LPG, Compressed air and other compressed gases in closed conduits. It is best suited for applications where affordability, reliability and ruggedness are of prime concerns
Specifications:
- Size: 1 inch to 8 inch
- Type of flow element: Differential flow element
- Accuracy: ±2.5% of actual reading
- Typical turndown: 10:3
- Density compensation: Online monitoring and compensation of density
- Communication protocol: MODBUS, RTU
- Communication port: RS485, RS232 (optional)
Description
Product Details:
| MOC of flow element | SS 316 |
| DPT | With display |
| Data logging | 4900 readings by default or extended 9800 |
| Comm port | RS485, RS232 (Optional) |
| Comm Protocol | MODBUS, RTU |
| Design standard | BS: 1042/ISO: 5167 |
| Accuracy | +- 2.5% of actual reading |
| Typical turndown | 10:3, 10:1 (Optional) |
| Density compensation | Online monitoring and compensation of density |
| Gas Temperature | Upto 70 deg C |
| Power supply | 85 to 265 V AC @ 50 Hz |
| Type of flow element | Differential flow element |
| End connection | Sorf flange |
| MOC of flanges | MS/CS/SS |
Gas /Steam Flow Meter is most suitable for measuring compressed air consumption, Biogas & LPG consumption in various industries.
Application Sectors for Gas Flow Meter
- Engineering & Automation
- Textiles
- Chemical/pharmaceutical
- Food & Drugs
- Petrochemicals
- Fertilizers
- Steel/ Aluminum
- Sugar Factories/Distilleries
Introduction
- The GFMc-150 flow meter is applicable for measuring flow rates of Bio-gas, LPG, Compressed air and other compressed gases in closed conduits.
- It is best suited for applications where affordability, reliability and ruggedness are of prime concerns.
- In conventional system of measurement, the differential pressure generated by orifice plate is measured by DP transmitter.
- The output from DP transmitter after square rooting is accepted as proportional to flow rate.
- This assumption is true only when the density is constant. Unfortunately density of compressible fluid is never constant.
- The density of compressible fluid changes with line pressure and line temperature.
- Thus, introducing errors in flow rate measurement.
Comparison with Vortex Flow Meter
| Parameter | Orifice |
| Well established standards | Available |
| Suitability for high pressure & temperature application. | Most suitable |
| Installation | Easy to install |
| Existing pipeline modifications for installation | No modifications required. |
| Recalibration of transmitter | Easy & can be done in house |
| Changes in Pressure, Temperature | Taken care during density compensation |
| Effects on resolution due to increase in line size | No effect |
| Suitability for low-velocity measurement | Suitable |
| Durability | No moving parts and hence no wear and tear and virtually maintenance free |
Additional Information:
- Item Code:GFMc-150
