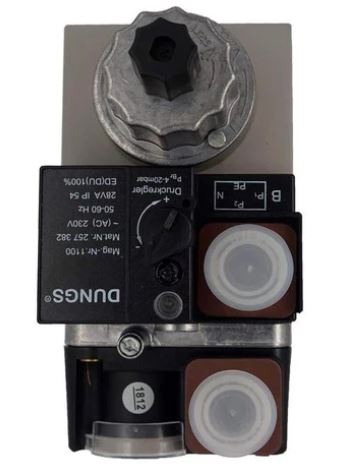

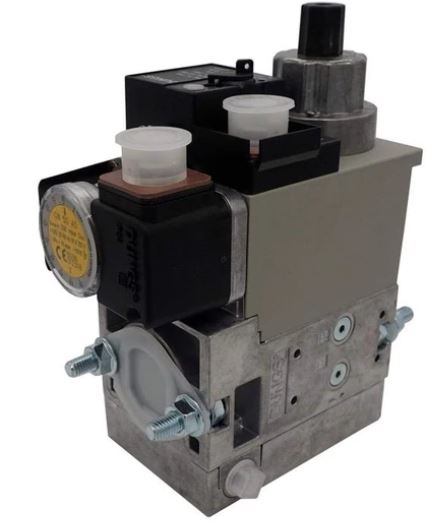

MB-DLE 410 B01 S52 Multibloc Gas Valve – DUNGS
MBDLE 410 B01 S52 Multibloc Gas Valve Features
Pressure switches can be additionally fitted to the MBDLE 410 as valves, the GW A5 and GW A2 pressure switches are suitable for this gas valve. The MBDLE features two solenoid valves; the first is fast opening and fast closing; the second is slow opening and fast closing.
- Connection Rp: Rp 1
- Pressure [bar] Max: 360 mBar
- Ambient operating temperature: -15 °C to +70 °C
- Output Pressure: 4 mBar – 50 mBar
- IP Protection: IP54
- Valve 2 Opening Time: 20 seconds approx.
- Fine mesh dirt trap.
- High flow rates with low-pressure drop.
- Compact and lightweight.
- Gas Valve Available in 110v Or 230v.
-
Dungs MBDLE Dimensions
Height Width Depth 186mm 74mm 151mm
Description
MB-DLE 410 B01 S52 Multibloc
Overview
The MBDLE 410 B01 S52 multibloc gas valve integrates a filter, regulator, valves and pressure switches in one small package to decrease installation and commissioning times. The modular system permits individual solutions in gas safety and regulatory engineering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
The MBDLE 410 is a single-seat valve and the S52 model has two valves that are controlled separately, not together.
The DUNGS MBDLE modular system allows individual solutions by using external ignition gas tap in connection with separately controlled valves, by adding a valve proving system, mini/maxi pressure switches, and pressure switch limiters.
